Gold vs. Silver Package Comparison Chart
Silver Package |
Gold Package |
|
|---|---|---|
| Exterior Windows | ANDERSEN Series 400 Clad windows per plan. High energy efficiency. Color - Terratone only | ANDERSEN Series 400 Clad windows per plan. High energy efficiency. Choice of color |
| Exterior Doors | Patio doors, single French doors, and courtyard swingers from ANDERSEN 400 Clad Series. Color - Terratone only | Patio doors, single French doors, and courtyard swingers from ANDERSEN 400 Clad Series. Choice of color |
| Roof Gable Overhang | 12” gable overhang, 12”-16” eave overhang | 24” gable overhang, 12”-16” eave overhang |
| Porch Ceilings, Fascia & Soffit | Fascia boards and 3/8” rough sawn pine plywood soffits and with vent strips | Fascia boards and 1x6 White Pine Tongue & Groove for soffits with vent strips |
| Handcrafted Logs | Available as separate option at extra charge | Porch posts (8”-14” approx. diameter) and 8x8 S4S carry beams |
| Blueprints | Final, not engineer sealed blueprints on pdf. Includes Basic Foundation plan. Up to 5 printed versions available for a fee. | Gold package also includes ENGINEER SEALED final blueprints on pdf. Includes Basic Foundation plan. Up to 5 printed versions are available for a fee. (NOTE: Illinois, California, and/or structural beamed roof or floor systems carry an additional charge) |
Note: In several areas of the country, building codes may require the purchase of the Gold Package

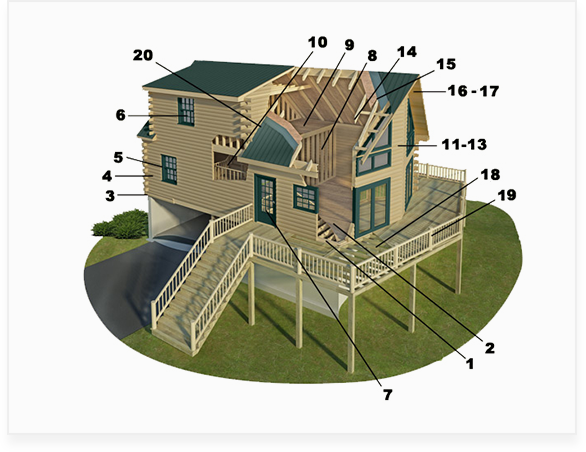

Standard Materials List
- Pressure-treated sill plate; termite shield & skirt flashing
- Conventional first-floor system with bridging and hangers as applicable; includes construction adhesive and 23/32” OSB floor sheathing
- Log skirting (matching log siding profile)
- Pine logs – Precut and numbered for window/door openings and applicable corner system (Eastern White Pine; 13 courses for approximate 8′ first-floor ceiling, 8/6 log with notch & pass or optional corner system, to be noted differently on Sales Agreement) with vertical wall posts for inside and angled corners
- Window and door buck lumber
- Windows provided based on package chosen. All choices are insulated low “E” double-hung, awning, angle bay windows per plan with 5/4” x 4” exterior trim; includes snap-in colonial grilles and screens where applicable. See Gold & Silver package comparison chart for further information. NOTE: All fixed upper gable glass is to be supplied by owner; 5/4” x 4” trim supplied with materials package
- Exterior doors provided based on package chosen. Choices include solid wood, stain-grade fiberglass, or steel insulated exterior doors with 5/4” x 4” exterior trim. See Gold & Silver package comparison chart for further information
- Interior partition framing with double top plate and single bottom plate; 2×6 framing where necessary for plumbing walls
- Conventional second-floor system with bridging and hangers as applicable; includes construction adhesive and 23/32” OSB floor sheathing
- Interior stair systems – 2×12 stringers with 2×4 temporary treads
- Gable end framing per plan with gable trim
- 7/16” OSB sheathing and building wrap for exterior stud walls
- Matching log siding for gable ends, dormers and second-story walls (and garage walls, if applicable) with 2” x 4” and 2″ x 6” corner boards for angled corners, PRECUT false log corners for other corners (NOTE: False log corners NOT available for saddlenotch corners)
- Conventionally framed roof system per plan, with sloped hangers for structural ridge areas as applicable
- 7/16” OSB roof sheathing, asphalt impregnated 30 lb synthetic roof underlayment
- Roof gable overhang provided based on package chosen. See Gold & Silver package comparison chart for further information.
- Fascia boards and soffits provided based on package chosen. See Gold & Silver package comparison chart for further information.
- Pressure-treated porch open deck, and exterior balcony framing (supports to grade by owner) and 5/4×6 bull-nosed decking (per plan); includes bolts for deck to house connections
- Round handcrafted White Cedar railing systems for porches, open decks, balconies, lofts, and open side(s) of interior stairways. Exterior stairs and stair rails are available as an upgrade order and can be quoted once site grade is known
- Roof valley and dormer step flashing, as applicable
Also included in our Standard Materials List:
- Porch roof framing, sheathing, underlayment, and ceiling
- Accessories including joist hangers and screws
- Double row poly-foam gasket, hardwood dowels, and caulking
- All attached/detached garages are supplied with 2×4 exterior framing, 7/16” OSB sheathing, building wrap, matching log siding, PRECUT false log corners where applicable, and conventionally framed roof system
- Illustrated construction manual and standard details
Each eLoghomes log home is designed to meet at least the minimum standards of the 2018 International Residential Code and will, in many cases, meet local building code requirements. However, some locations may impose other requirements which you must make eLoghomes aware of to insure that your log home is appropriately modified to meet those specific requirements.
All eLoghomes designs meet a 40 lb. roof/snow load standard. Roof loading can easily be modified for your particular building location at either a modest extra charge (for higher load regions) OR a cost reduction (for lower load areas).
Nails are only provided by eLoghomes under our shell erection agreement.
All attached/detached garages are supplied with 2”x4” exterior framing, 7/16” OSB sheathing, building wrap, matching log siding, PRECUT false log corners where applicable, and conventionally framed roof system.
We do not include:
- Exterior stairways to grade
- Fireplace and chimney
- Stonework or other exterior wall materials
- Insulation
- Deck flashing
- Fixed Trapezoidal glass windows
- Pine or other finished flooring
- Gutter systems
- Roof covering, such as asphalt shingles or metal roofing
- Roof ventilation and drip edge
- Garage doors
- Other interior finish materials
